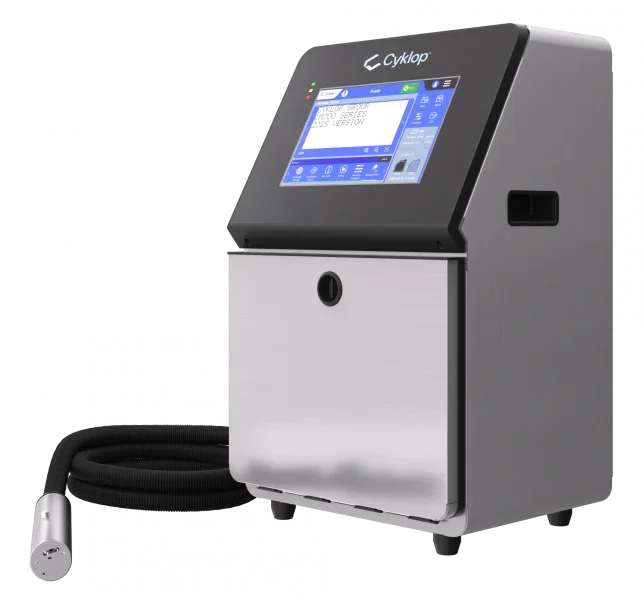

CM 750
CM 750
Coding System: CM 750
The CM 750 is designed to meet the demanding requirements necessary for an industrial printer. High reliability, even in the harshest working environments. Working with the CM 750 is made easy by the quick and clean cartridge-changing facility. Simple to install and operate via a clearly visible 10-inch touch screen. As standard, the CM 750 is fitted with an economical ink and solvent system. It can be driven via a networked or local scanner. The CM 750 is up to the job.
Modular ink system
IP55 industrial structure
Quick, clean, fluids addition / replace cartridges quickly and without spillage
Maintenance friendly modular print head
A Simple high resolution operated user interface
Clean coding with ink that dries quickly and adheres well
10-Inch color touch screen for ease of operation
Low consumption costs
Single filter module
Low total cost of ownership
Tech Specs
| Screen size | Color 10 inch TFT LCD Touchscreen |
|---|---|
| Cartridge volume | 750ml |
| Total Ink volume | 1,600ml |
| Nozzle | 60/70µm |
| Print lines | 4 lines x 7 high / 5 lines x 5 high |
| Print Fonts | 5x5, 7x5, 9x7, 11x9, 16x11, 19x14, 24x16, 32x24 |
| Positive Air pump | Standard |
| Print Data source | USB, RS232, TCP/IP |
| Operating range | 5 – 45°C |
| Protection class | IP55 |
